Standard & Smart 4S BMS wiring tutorial

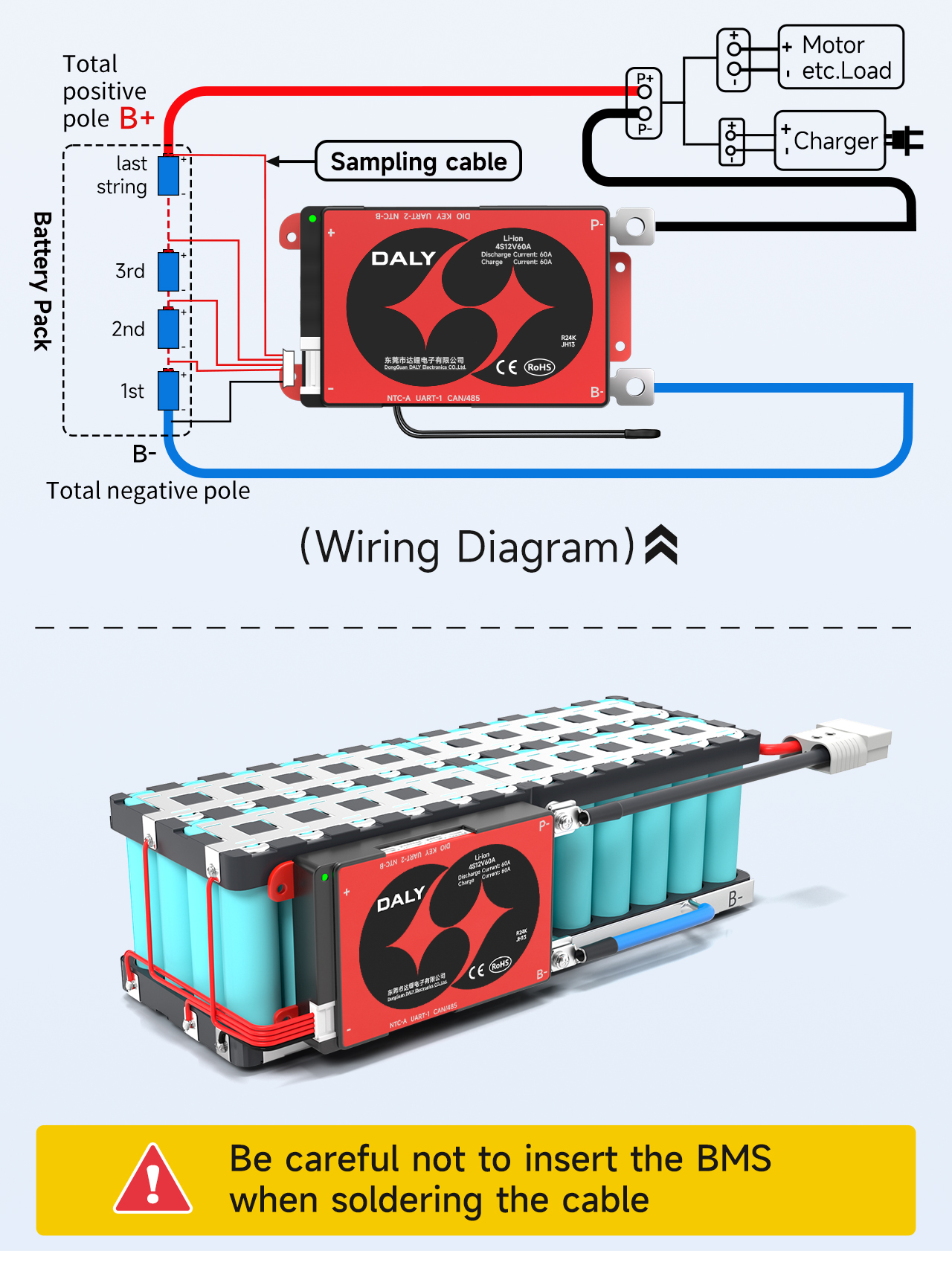

Take a 4S12P 18650 battery pack as an example
Be careful not to insert the protective board when soldering the cable.

铁锂4串接线流程-英文_01

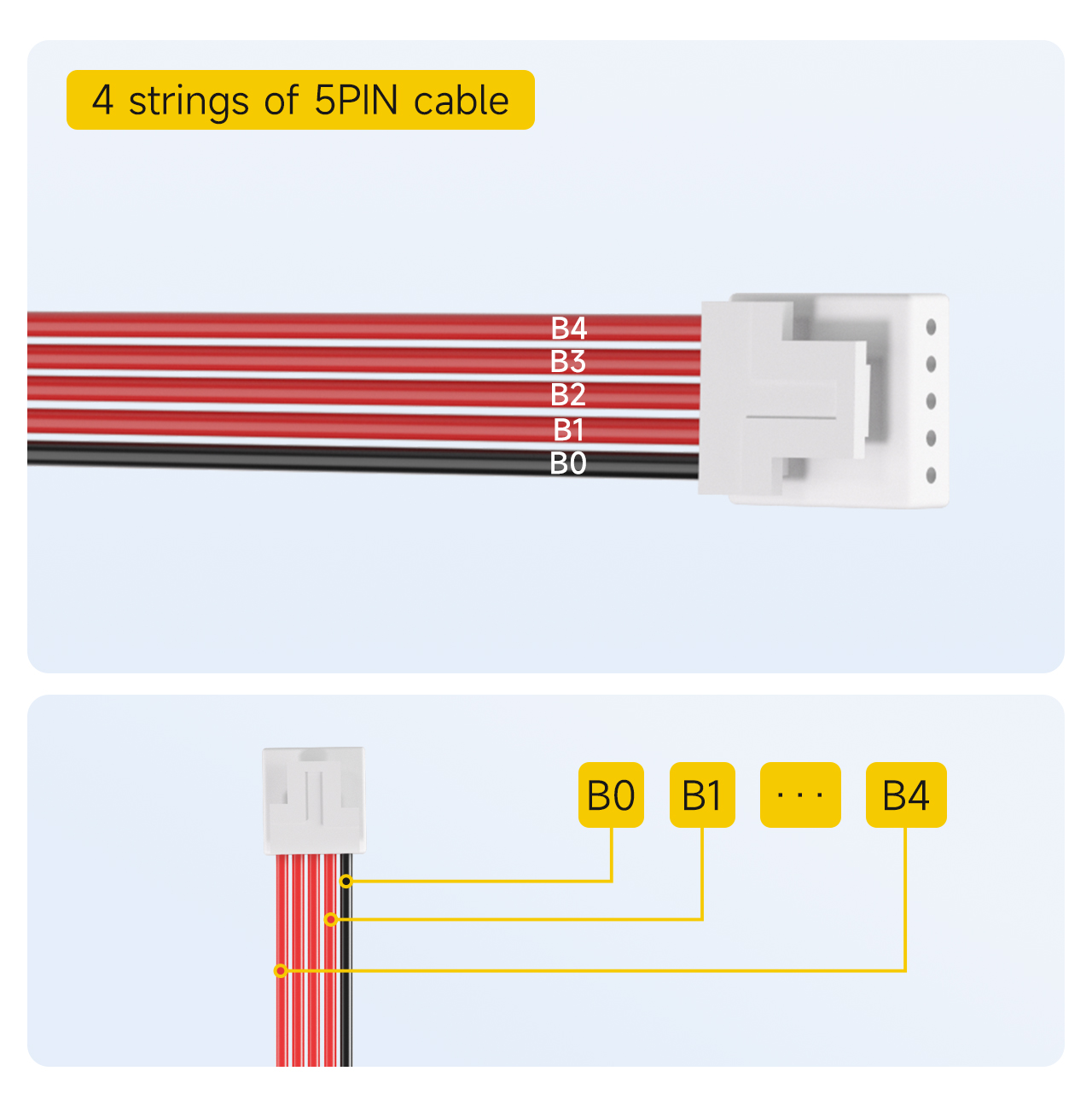

Ⅰ.Mark the order of sampling lines

4S BMS with 5PIN cable
Note: The default sampling cable for 4-string protection board configuration is 5PIN.
1. Mark the black cable as B0.
2. The first red cable next to the black cable is marked as B1.
... (and so on, marked sequentially)
5. Until the last red cable, marked as B4.

铁锂4串接线流程-英文_02

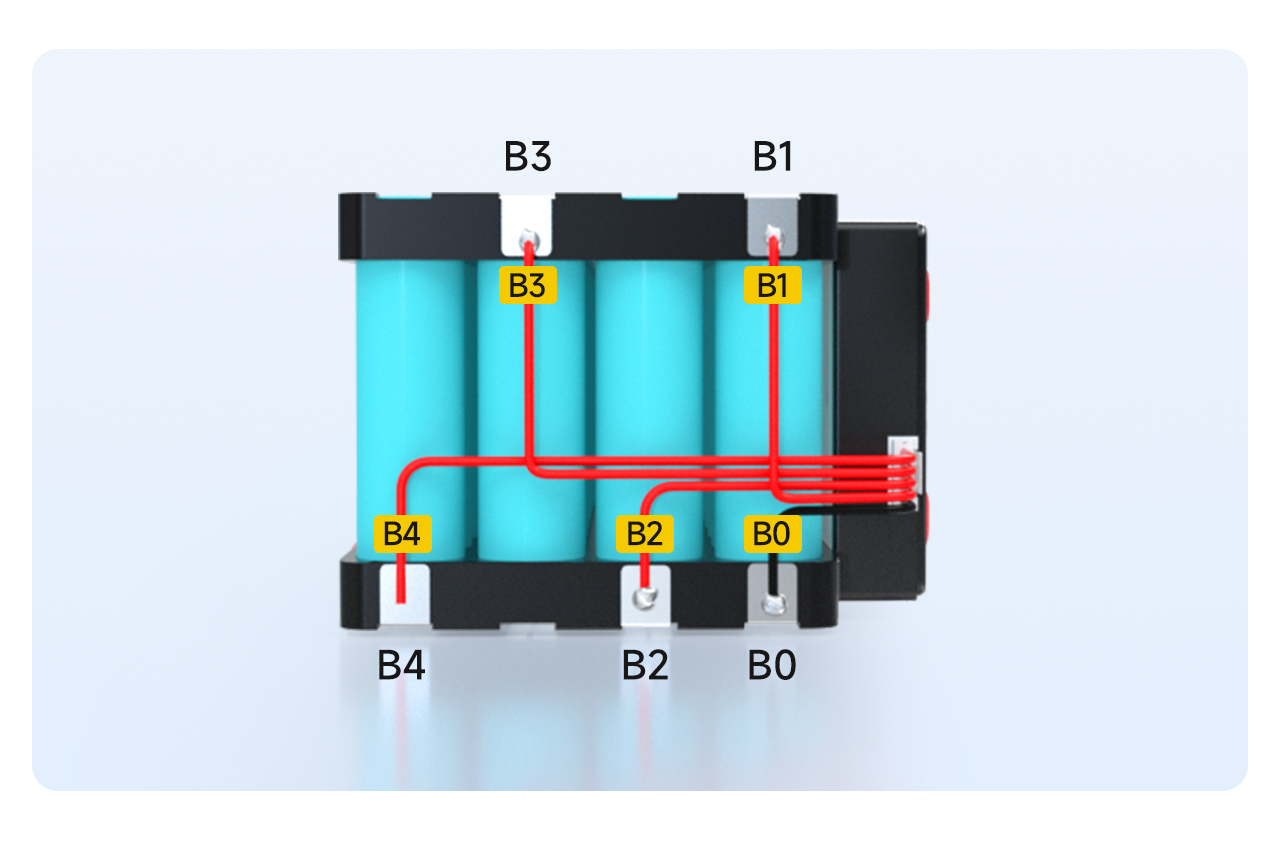

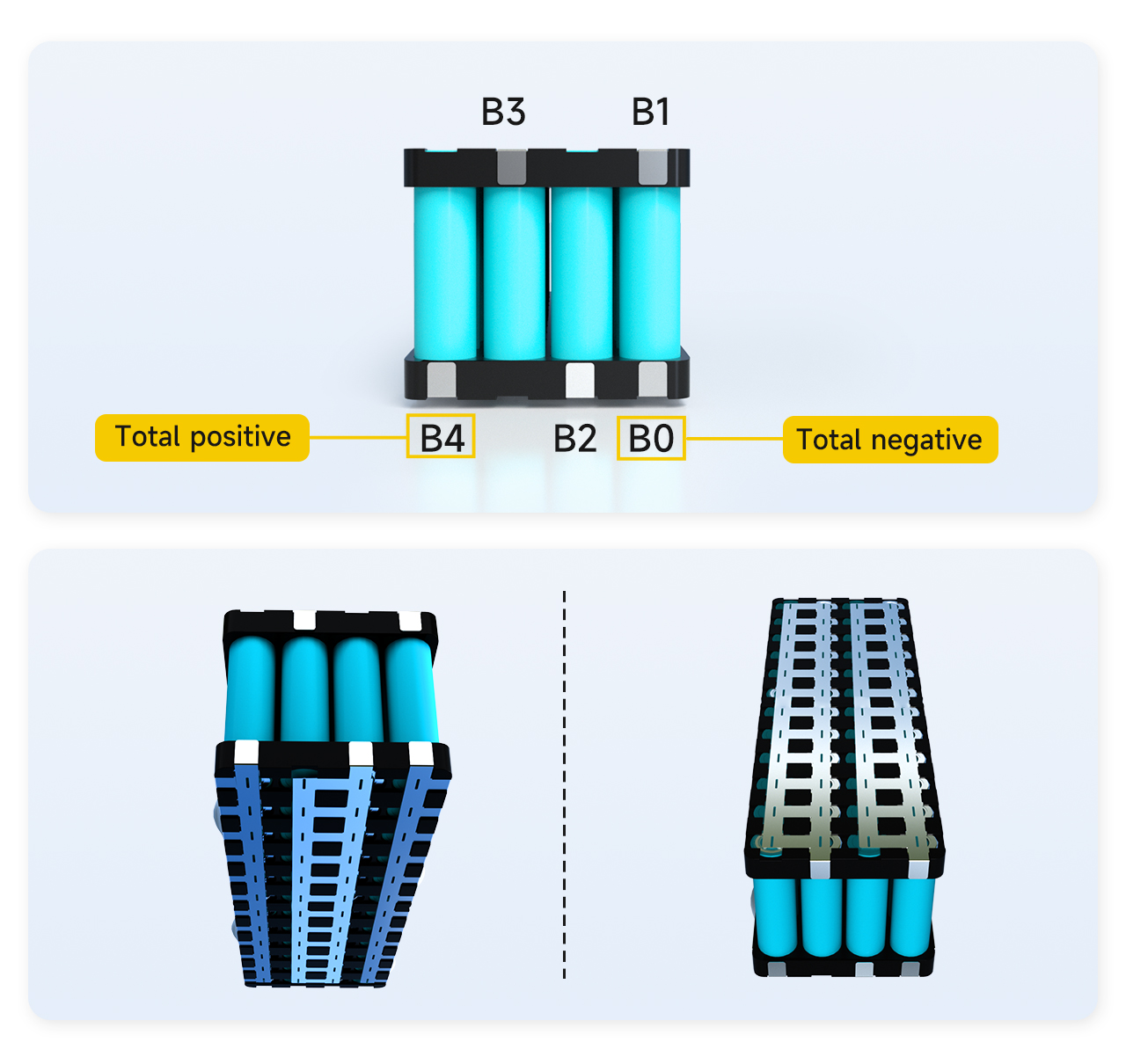

Ⅱ. Mark the order of battery welding points

Find the position of the corresponding welding point of the cable, first mark the position of the corresponding point on the battery.
1. The total negative pole of the battery pack is marked as B0.
2. The connection between the positive pole of the first string of batteries and the negative pole of the second string of batteries is marked as B1.
3. The connection between the positive pole of the second string of batteries and the negative pole of the third string of batteries is marked as B2
4. The connection between the positive pole of the 3th battery string and the negative pole of the 4th battery string is marked as B3.
5. The positive electrode of the 4th battery string is marked as B4.
Note: Because the battery pack has a total of 4 strings, B4 is also the total positive pole of the battery pack. If B4 is not the total positive stage of the battery pack, it proves that the order of marking is wrong, and it must be checked and marked again.

铁锂4串接线流程-英文_03

Ⅲ. Soldering and wiring

1. The B0 of the cable is soldered to the B0 position of the battery.
2. The cable B1 is soldered to the B1 position of the battery.
... (and so on, welding in sequence)
5. The cable B4 is soldered to the B4 position of the battery.

铁锂4串接线流程-英文_04

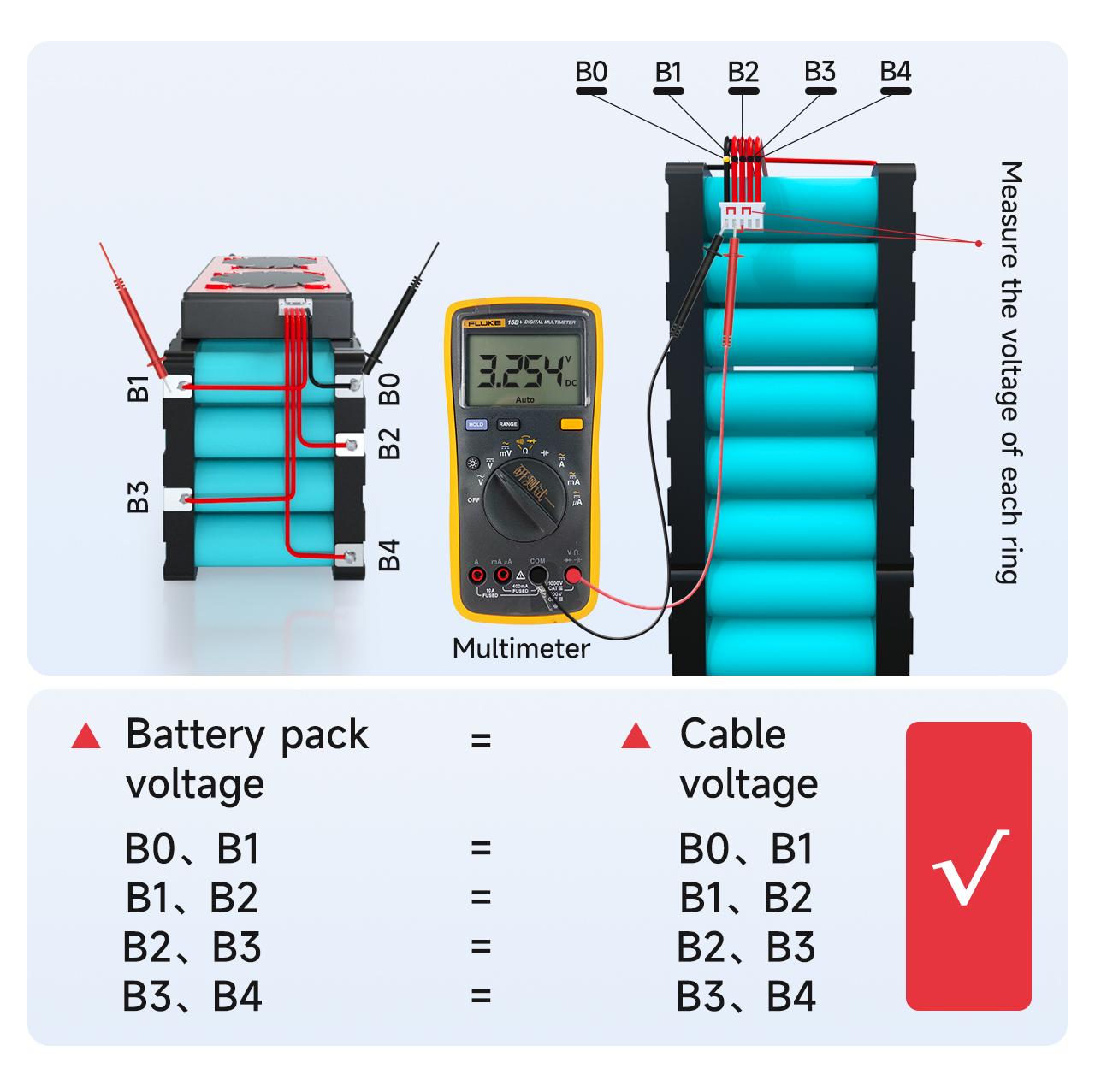

Ⅳ. Voltage Detection

Measure the voltage between adjacent cables with a multimeter to confirm that the correct voltage is collected by the cables.

1.Measure whether the voltage of the cable B0 to B1 is equal to the voltage of the battery pack B0 to B1. If it is equal, it proves that the voltage collection is correct. If not, it proves that the collection line is weakly welded, and the cable needs to be re-welded. By analogy, measure whether the voltages of other strings are collected correctly

2. The voltage difference of each string should not exceed 1V. If it exceeds 1V, it means that there is a problem with the wiring, and you need to repeat the previous step for detection.

铁锂4串接线流程-英文_05

Ⅴ. Detection of protection board quality

! Always make sure the correct voltage is detected before plugging in the protection board!

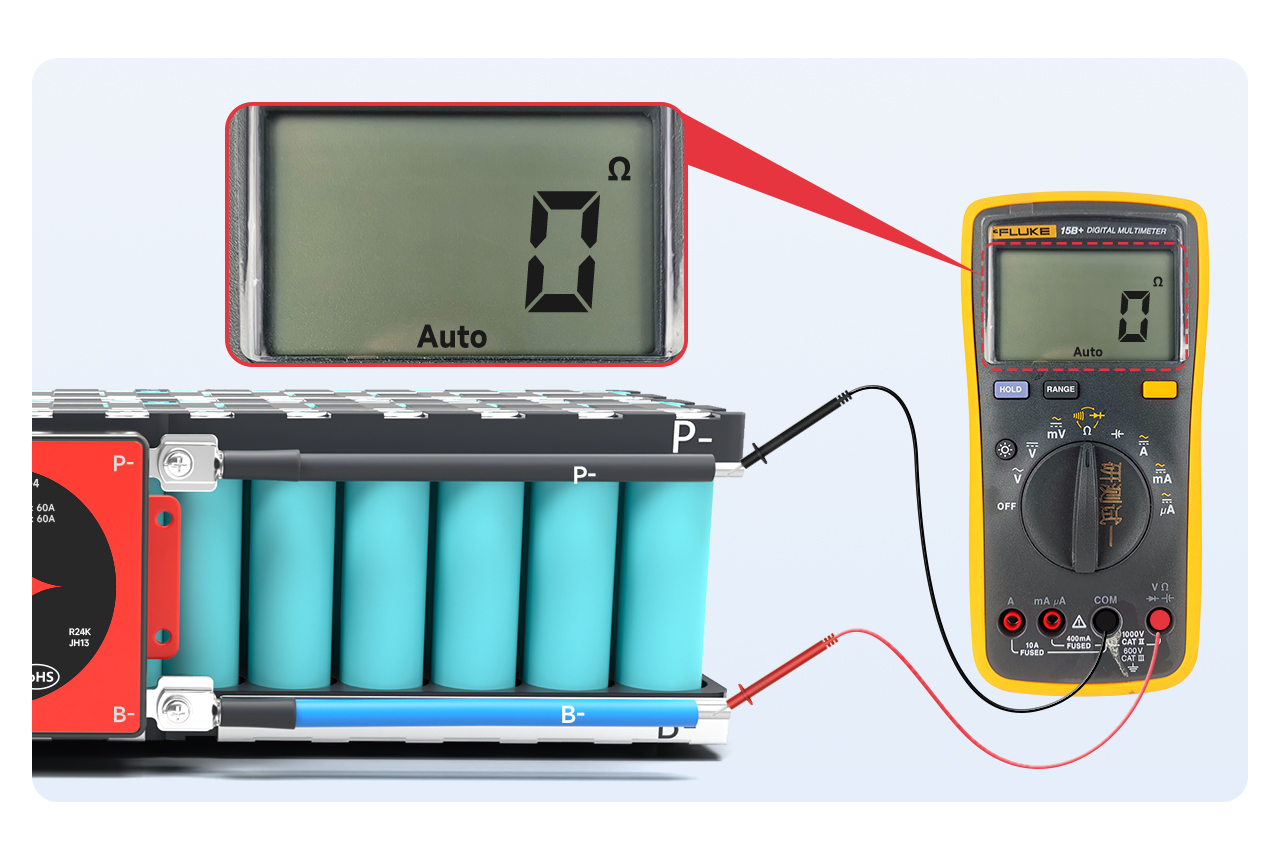

Adjust the multimeter to the internal resistance level and measure the internal resistance between B- and P-. If the internal resistance is connected, it proves that the protection board is good.
Note: You can judge the conduction by looking at the internal resistance value. The internal resistance value is 0Ω, which means conduction. Due to the error of the multimeter, generally, less than 10mΩ means conduction; you can also adjust the multimeter to the buzzer. A beeping sound can be heard.

铁锂4串接线流程-英文_06

Note:

1. The protective board with a soft switch needs to pay attention to the conduction of the switch when the switch is closed.

2. If the protection board is not conducting, please stop the next step and contact the sales staff for processing.

Ⅵ. Connect the output line

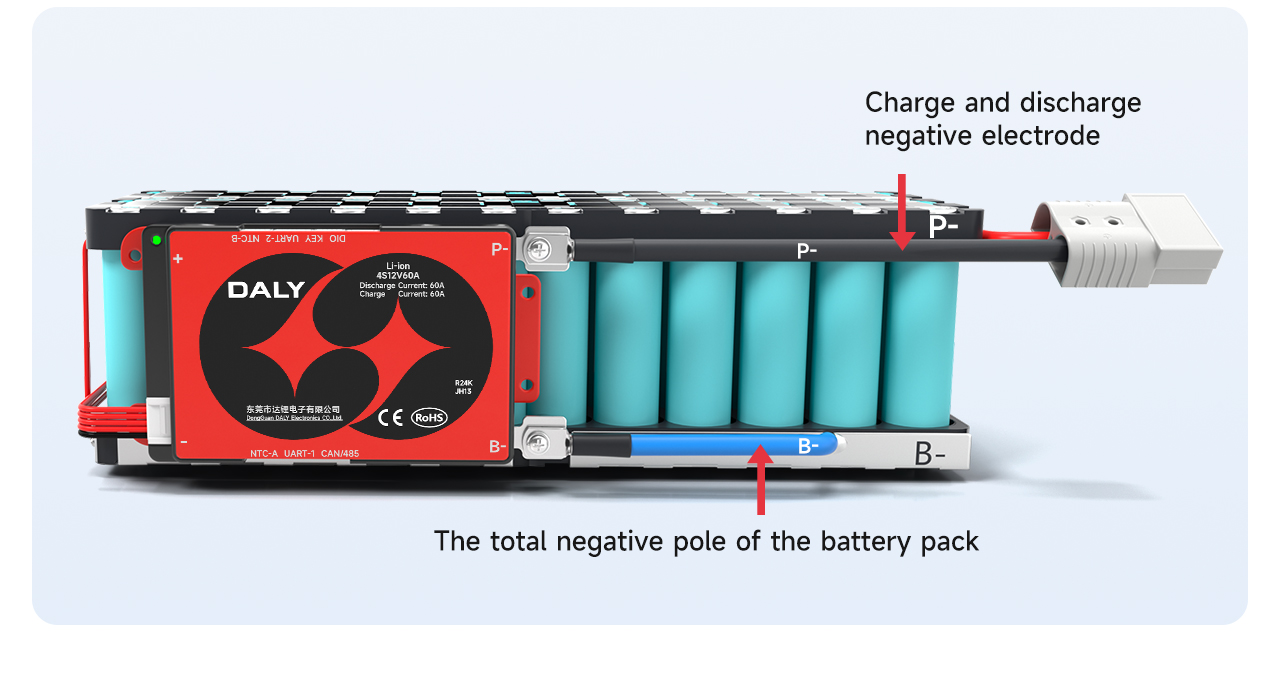

After ensuring that the protection board is normal, solder the blue B- wire on the protection board to the total negative B- of the battery pack. The P-line on the protection board is soldered to the negative pole of charge and discharge.

After welding, check whether the voltage of the overprotection board is consistent with the battery voltage.

铁锂4串接线流程-英文_07
铁锂4串接线流程-英文_08

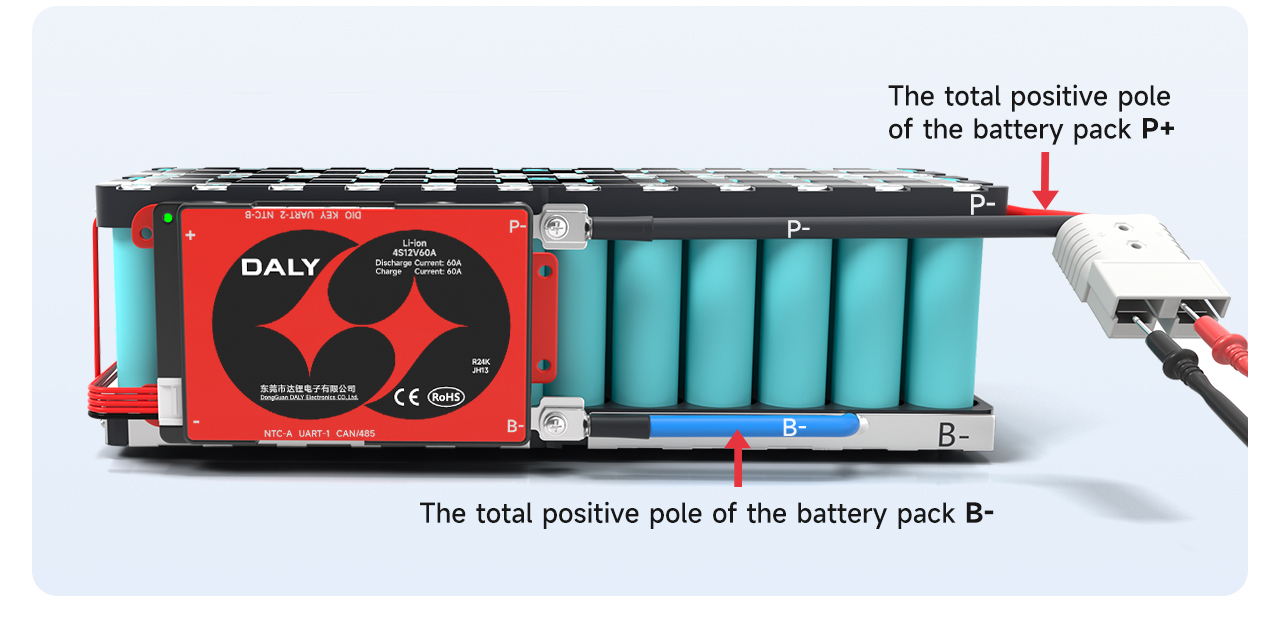

Note: The charging port and discharge port of the split protection board are separated, and the extra C-line (usually indicated by yellow) needs to be connected to the negative pole of the charger; the P-line is connected to the negative pole of the discharge.

铁锂4串接线流程-英文_09

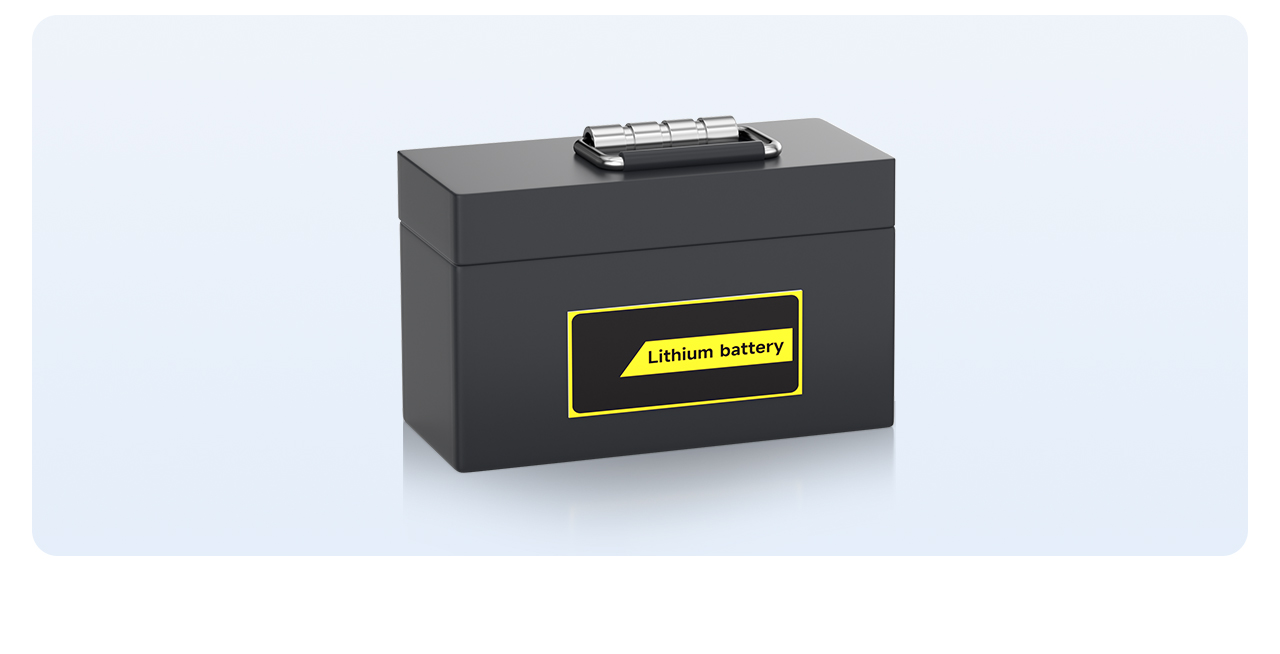

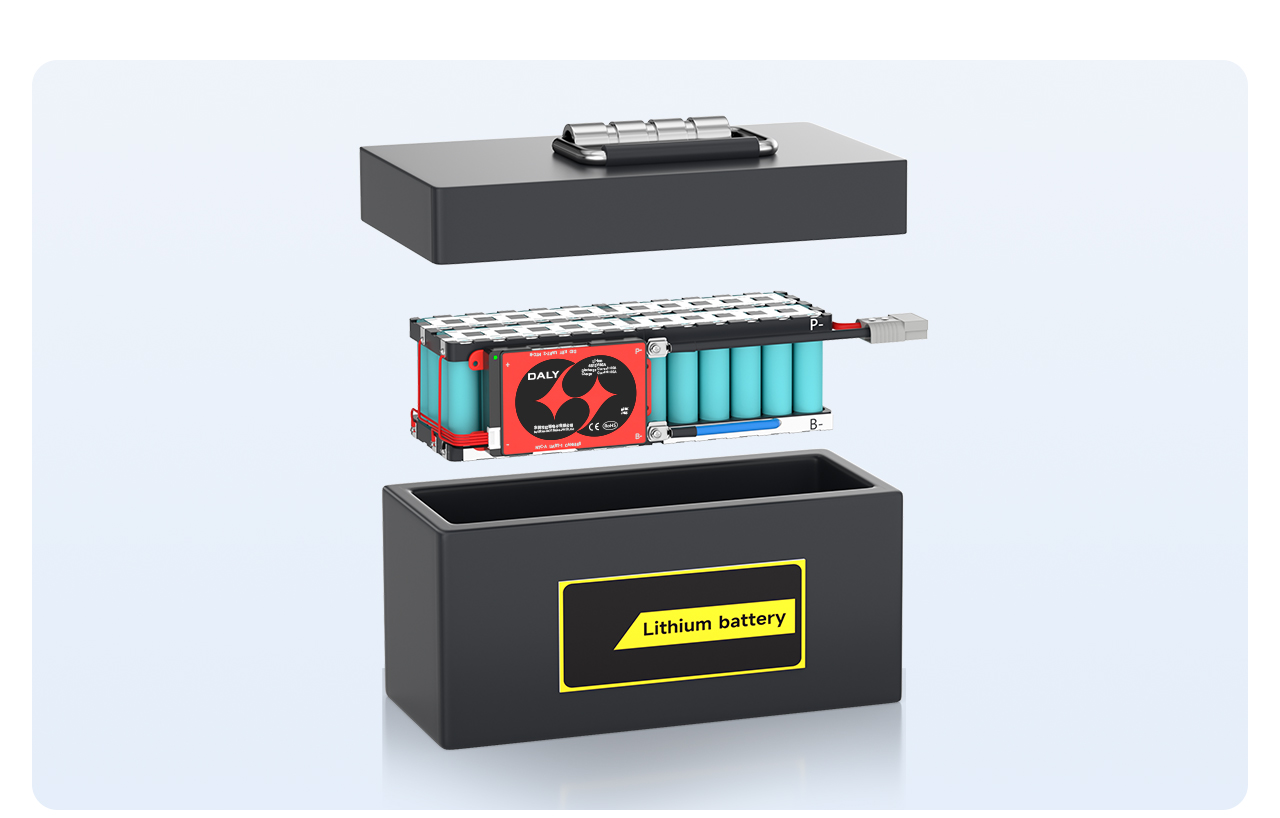

Finally, place the battery pack inside the battery box, and a finished battery pack is assembled.

铁锂4串接线流程-英文_10
